Test Method: SATRA TM19

Dimensional measurements of plastic heels

August 2001

SCOPE

This test method is intended to determine the critical dimensions of slender plastic heels containing, in many cases, steel tension pin reinforcement. The method is applicable to both moulded plastic heels and heels removed from complete footwear.

PRINCIPLE

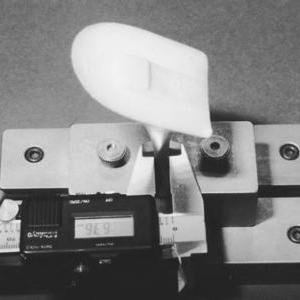

Dimensions of the heels are measured using appropriate measurement equipment. These dimensions include heel height, tip width, stem depth, tension pin internal and external diameters, tension pin length and distance between top of tension pin and heel seat.

REFERENCES

BS969: 1982 – Specification for limits and tolerances on plain limit gauges.

HISTORY

First issued January 1987. Revised August 2001.

AVAILABILITY

This test method is available to members and non-members.

PRICE (ex. VAT)

This price is for a printed copy of the Test Method.

  • Members: £75
  • Non-members: £215
