Test Method: SATRA TM96

Security of heel pins

September 1995 (2017)

SCOPE

This method is intended to determine the heel pin holding strength of a heel component, or the heel pin pull out force on a completed shoe. The method is mainly applicable to plastic heels for women’s footwear but can also be used with wooden heels. The method is not appropriate for heels constructed from several layers of fibreboard or leather, or low plastic heels for men’s footwear.

PRINCIPLE

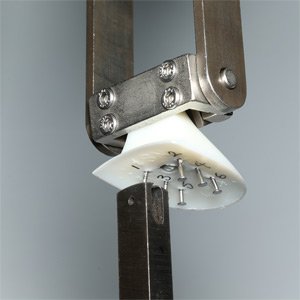

A tensile testing machine is used to measure the force required to pull heel pins out of a heel.

Method 1 – Heel pin holding strength – A standard buttress heel pin is used and the maximum pull out force is divided by the length of buttressing in the heel to give the holding strength.

Method 2 – Heel pin pull out force – The heel pins are pulled out of the heel of a completed shoe.

REFERENCES

EN ISO 7500-1:2015 - Metallic materials. Calibration and verification of static uniaxial testing machines. Tension/compression testing machines. Calibration and verification of the force-measuring system.

HISTORY

First issued December 1977. Revised July 1980, September 1995.

AVAILABILITY

This test method is available to members and non-members.

PRICE (ex. VAT)

This price is for a printed copy of the Test Method.

  • Members: £75
  • Non-members: £215
