Test Method: SATRA TM217

Resistance to surface wetting (spray rating)

June 1999


This method is intended solely to assess the resistance to surface wetting of a material by water. The method is not intended to measure the ability of a fabric to resist water penetration. The method is applicable to all fabrics and to fabric samples cut from garments.

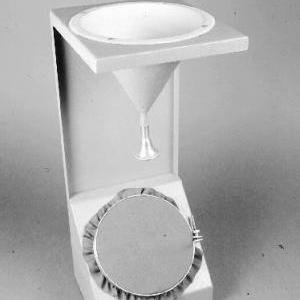

A specified volume of distilled or deionised water is allowed to fall through a spray rose onto a test specimen which is inclined at an angle of 45 degrees and positioned a specified distance below the spray rose. The sprayed test specimen is assessed against standard photographs and the degree of wetting recorded as a spray rating and corresponding descriptive term.

The test may be carried out on test specimens of original, worn, dry cleaned or laundered material.


AATCC 22: 1996 – Water repellency and spray test.
BS EN 24920: 1992 – Determination of resistance to surface wetting (spray test) of fabrics.
ISO 3696: 1987 – Water for analytical laboratory use – specification and test methods.
ISO 4920: 1981 – Determination of resistance to surface wetting (spray test) of fabrics.


First issued June 1999.


This test method is available to members and non-members.


This price is for a printed copy of the Test Method.

  • Members: £75
  • Non-members: £215
